Hyundai HX210HD & HX220HD Heavy Duty Crawler Excavator Series

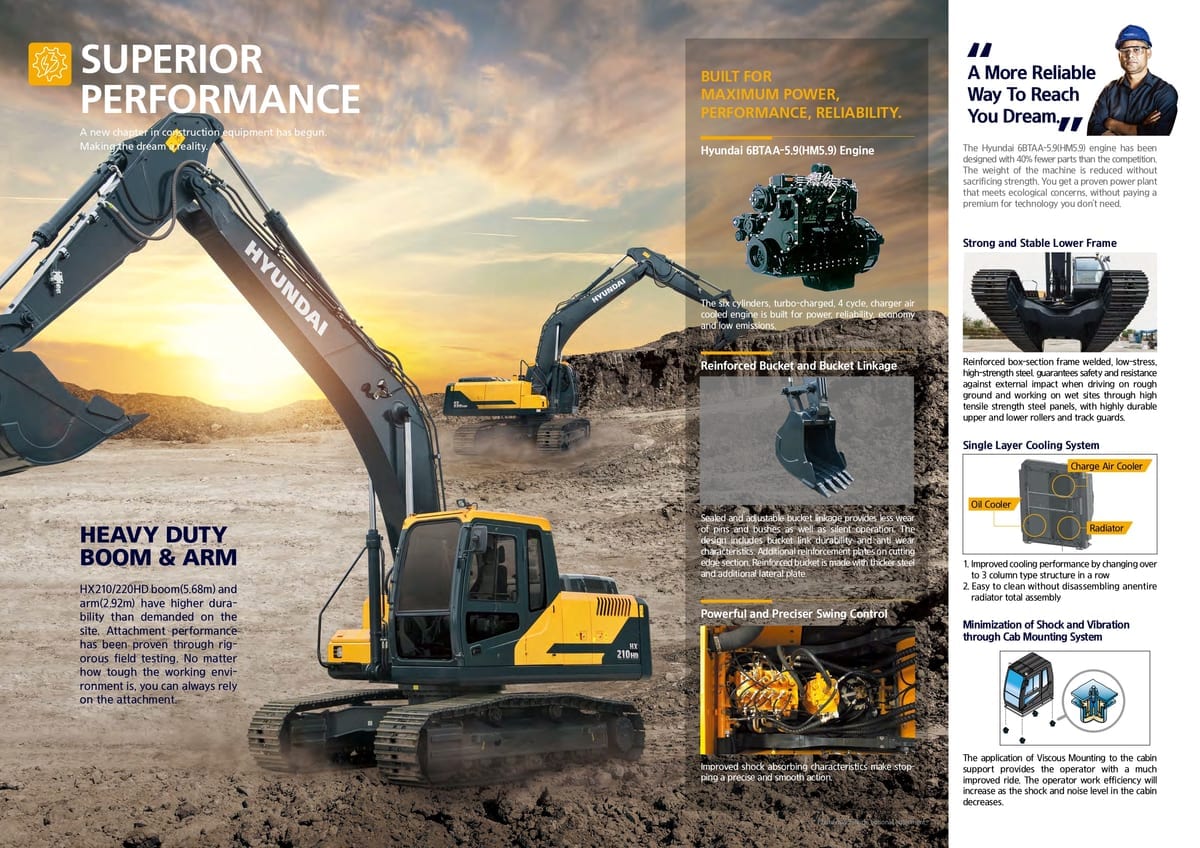

The Hyundai HX series is engineered to transform demanding site requirements into reality, offering maximum power, reliability, and fuel efficiency. Powered by the robust Hyundai 6BTAA-5.9 engine, these machines are built to withstand the toughest working environments while maintaining ecological concerns without unnecessary technology costs. Feature,Specifications Engine Model,"Hyundai 6BTAA-5.9 (HM5.9) - 6 Cylinder, Turbo-charged" Net Power,"145HP (108kW) at 2,000rpm" Operating Weight,"20,990kg (HX210HD) / 21,420kg (HX220HD)" Bucket Capacity,0.87−1.20m3 Max. Digging Depth,"Up to 6,730mm (22′1"") " Superior Durability: Features a heavy-duty boom (5.68m) and arm (2.92m) designed with higher durability than standard site demands. Reinforced Structures: The undercarriage includes an X-leg type center frame integrally welded with reinforced box-section track frames for maximum resistance against external impact. Variable Power Control: Includes three power modes (Power, Standard, Economy) to optimize engine performance and fuel savings based on the specific work environment. Hi-MATE Remote Management: An optional GPS-satellite system that allows users to remotely evaluate machine performance, access diagnostics, and verify locations. Operator-Centric Cabin: Equipped with an ISO standard all-weather steel cab providing 360 ∘ visibility, an intelligent display, and highly sensitive joysticks for precise control. Simplified Serviceability: Centralized electric control boxes and easy-access engine components significantly reduce maintenance time and increase machine uptime. Send Message for more information.
