TENHUN TH719H Motor Grader

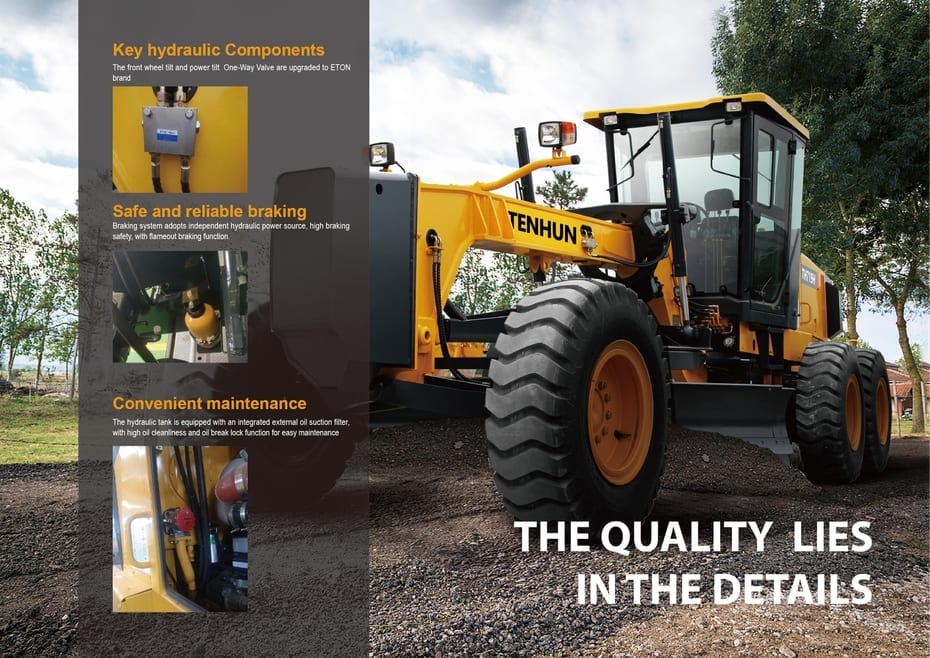

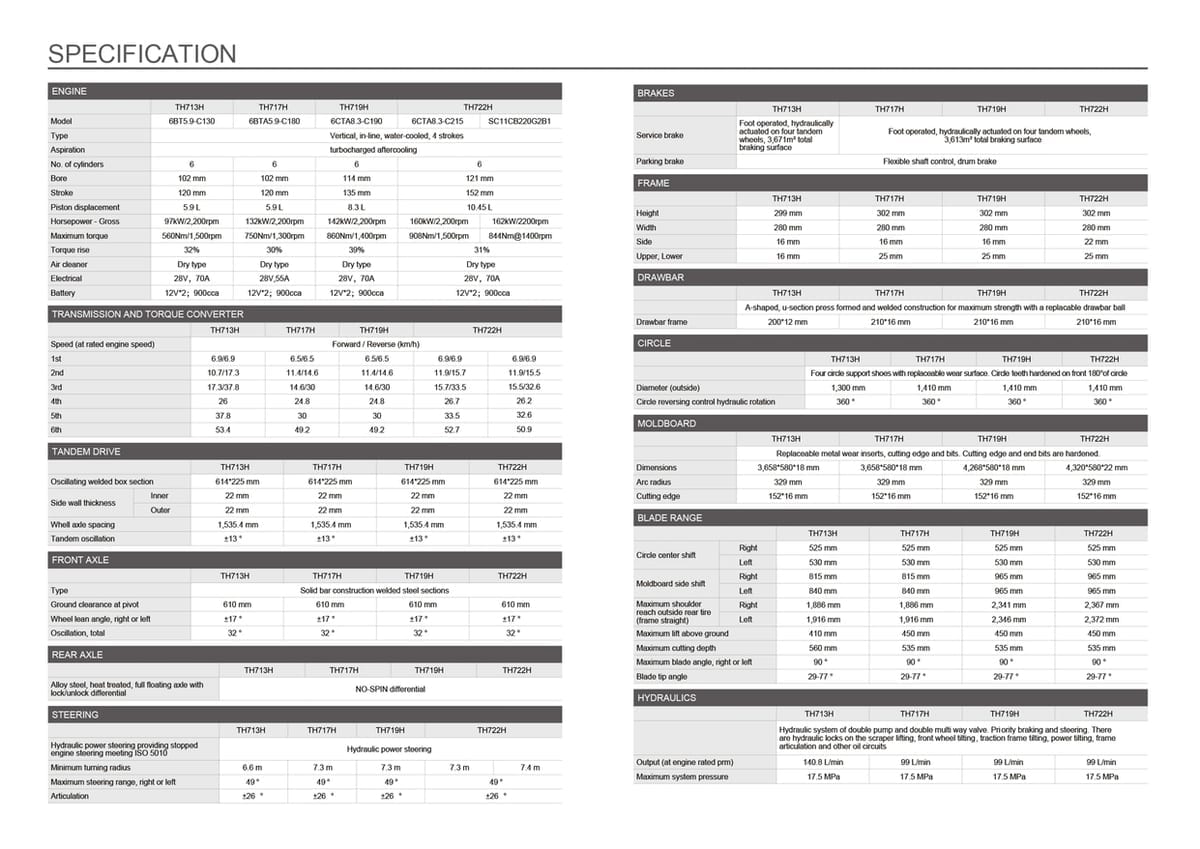

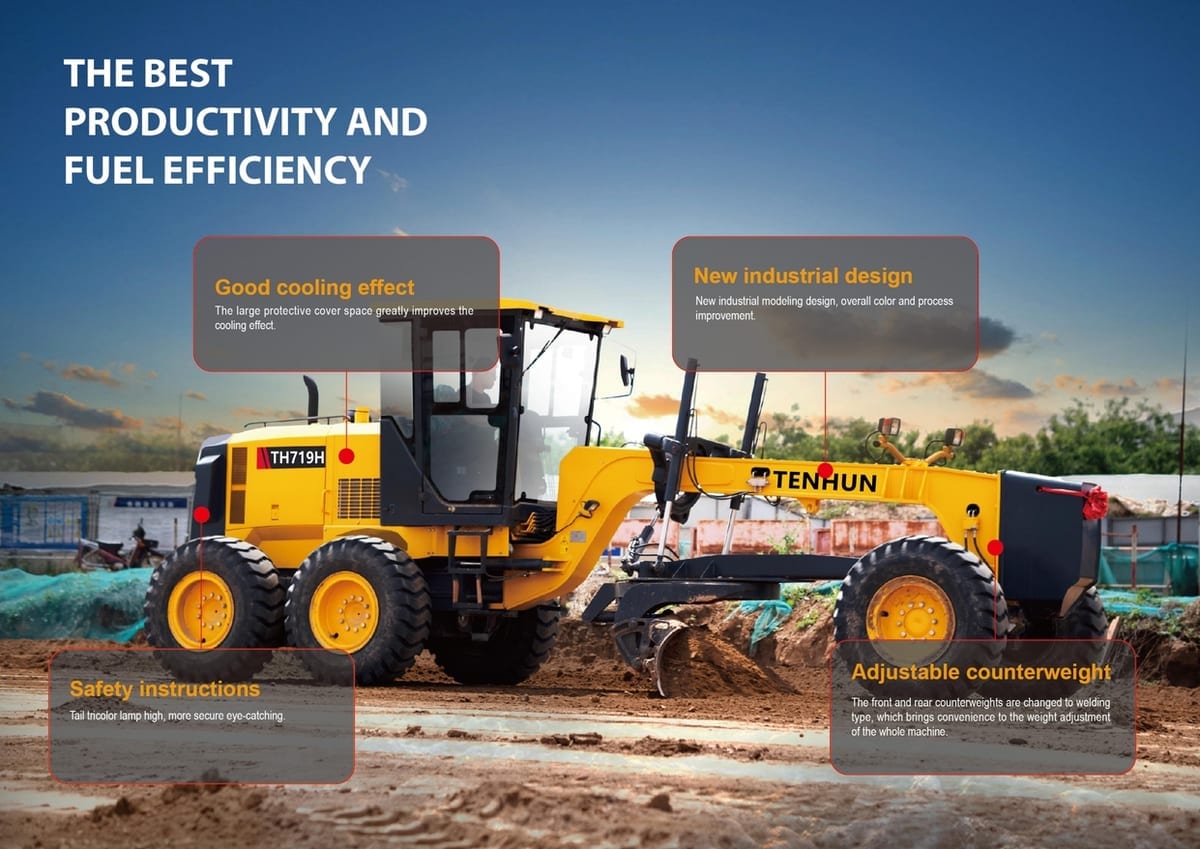

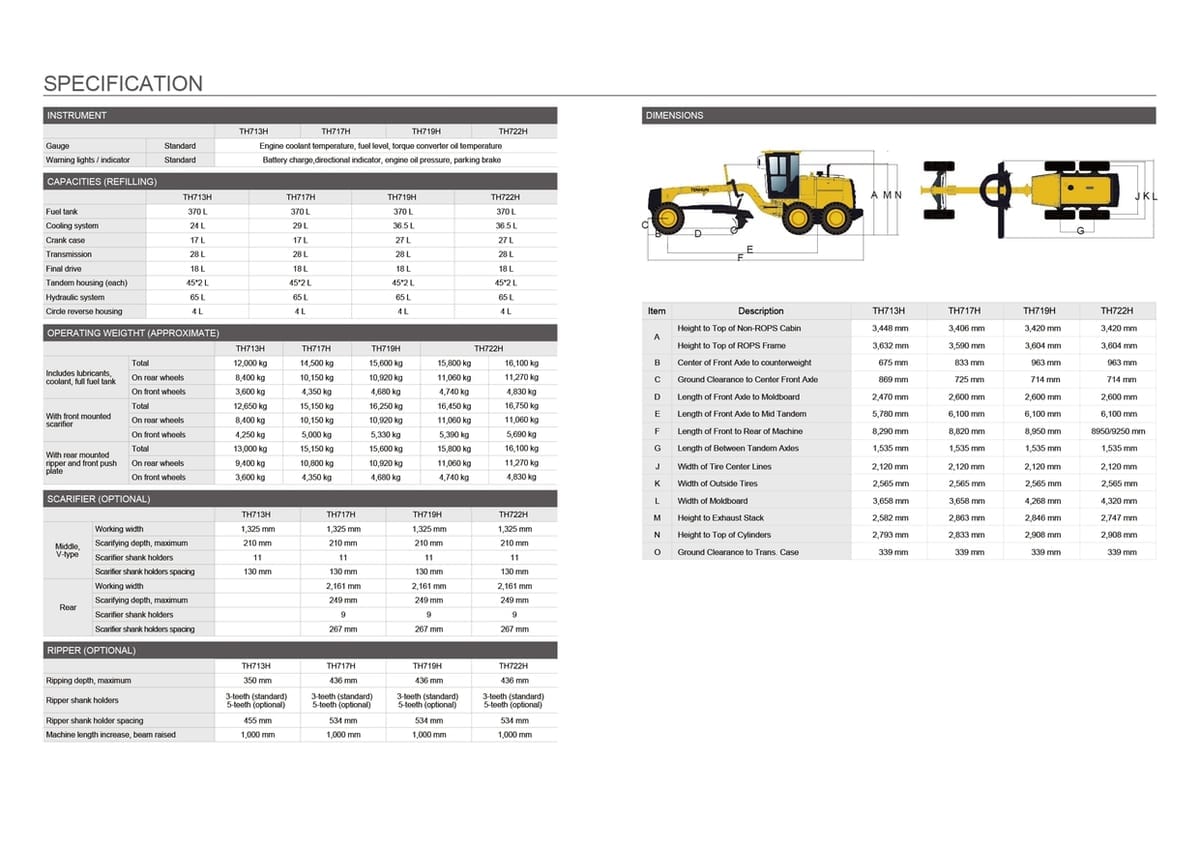

Feature,Specification Operating Weight,"15.8 ton (Approx. 15,800 kg)" Engine Maker/Model,Cummins 6CTA8.3 Horsepower (Gross),"160 kW (215 hp) @ 2,200 rpm" Max. Torque,"860 Nm @ 1,400 rpm " Transmission,"Power shift (ZF6WG200), 6 Fwd/3 Rev Gears" Moldboard Dimensions,"4,320 mm x 580 mm x 22 mm" Tandem Drive Oscillation,±13° Key Features & Operator Comfort The TH719H features a new industrial design focused on safety and productivity: Excellent Visibility: Well-positioned blade linkage and side pillars provide an unobstructed view of the moldboard and front tires. Advanced Hydraulics: Upgraded ETON brand front wheel tilt and power tilt one-way valves for precision control. Operator Environment: Equipped with an adjustable control console, tilting steering wheel, and high-airflow air conditioning. Safety Lighting: High-positioned tail tricolor lamps and bright, long-lasting LED lights for the cabin and attachments Working Range & Dimensions Essential measurements for site accessibility and logistics planning: Overall Height (Top of Cabin): 3,420 mm Width (Outside Tires): 2,565 mm Wheelbase (Front Axle to Mid Tandem): 6,100 mm Circle Rotation: 360° Max. Lift Above Ground: 450 mm Max. Cutting Depth: 535 mm Optional Work Tools & Attachments Customizable configurations to handle various material types: Front Dozer: Used for spreading gravel piles or blading in hard-to-access areas. Rear Ripper: Accommodates 3 standard or 5 optional shanks for hard materials. Mid-mount Scarifier: V-type design accommodating up to 11 teeth for surface preparation. Logistics & Manufacturer Support Fuel Capacity: 370 L large-capacity tank for extended operation. Easy Maintenance: Integrated external oil suction filter with oil break lock function for clean and simple servicing. Send message for more information.
