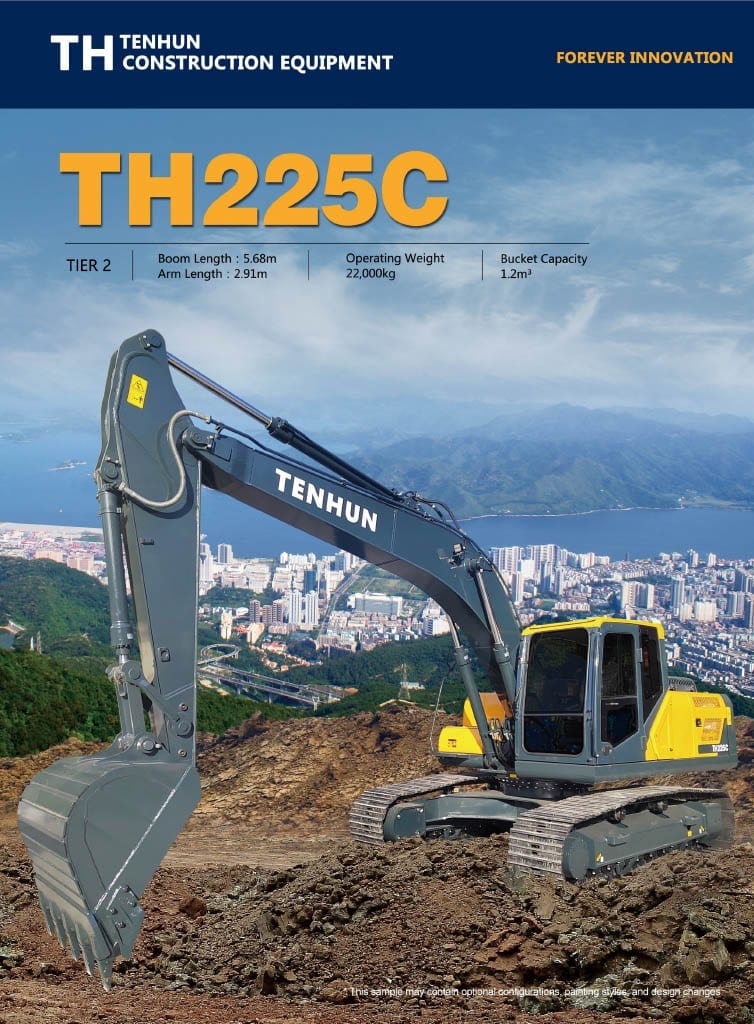

TENHUN TH225C Heavy Duty Hydraulic Crawler Excavator

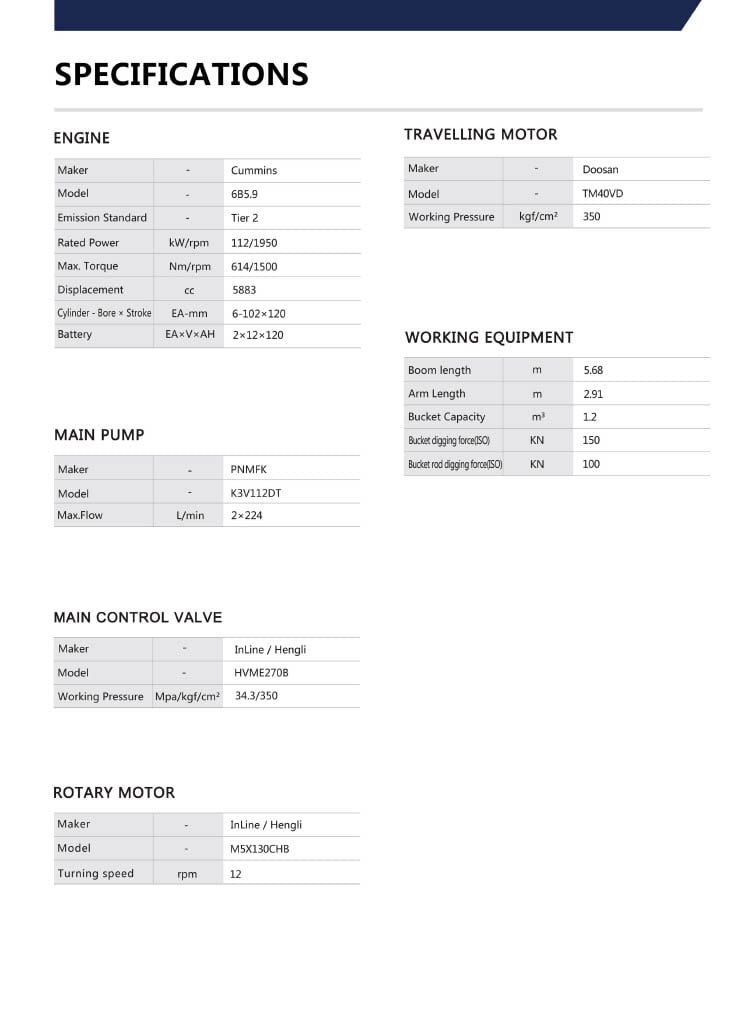

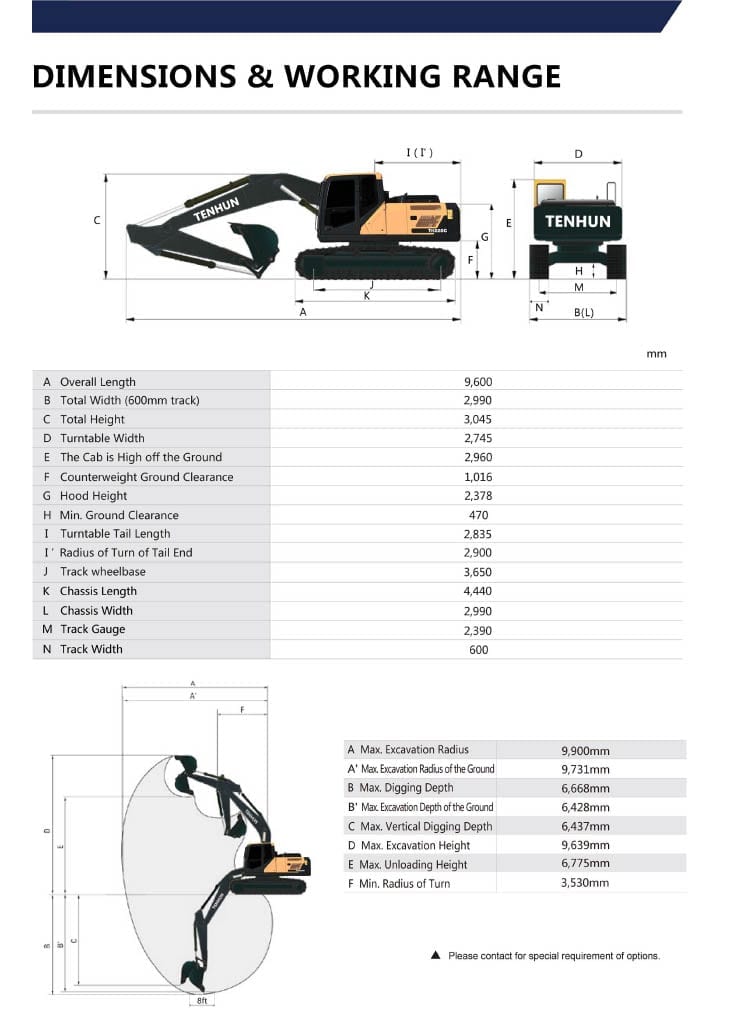

Feature,Specifications Model,TH225C Operating Weight,"22,000 kg Engine Maker / Model,Cummins 6B5.9 (Tier 2) Rated Power,112 kW / 1950 rpm Max. Torque,614 Nm / 1500 rpm Bucket Capacity,1.2m3 Main Pump,PNMFK K3V112DT (Max. Flow: 2x224 L/min) Main Control Valve,InLine / Hengli HVME270B Traveling Motor,Doosan TM40VD The TENHUN TH225C is engineered under the motto of "Forever Innovation," offering a perfect balance of power, efficiency, and durability for large-scale construction and earthmoving projects. Powered by the globally recognized Cummins 6B5.9 engine, this 22-ton excavator ensures high productivity with optimized fuel consumption. Performance Highlights: Powerful Digging Capabilities: Features a 150 KN bucket digging force and 100 KN arm digging force (ISO) to handle the toughest terrains. Advanced Hydraulic System: Equipped with a high-flow PNMFK main pump and precision InLine/Hengli control valves for smooth, multi-functional operation. Reliable Traction: The Doosan traveling motor provides a working pressure of 350kgf/cm^2 ensuring stable movement across challenging job sites. Robust Configuration: Standard setup includes a 5.68m boom and a 2.91m arm for an extensive working reach. Working Range & Dimensions Working Range Performance: Max. Excavation Radius: 9,900 mm Max. Digging Depth: 6,668 mm Max. Excavation Height: 9,639 mm Max. Unloading Height: 6,775 mm Min. Radius of Turn: 3,530 mm Overall Dimensions: Overall Length: 9,600 mm Total Width: 2,990 mm Total Height: 3,045 mm Track Width: 600 mm Supply & Logistics Information Customization: Optional configurations, specialized painting styles, and design changes are available upon request to meet specific project needs. Quality Assurance: Built to Tier 2 emission standards with industrial-grade components from Cummins, Doosan, and Hengli. Contact for Inquiry
