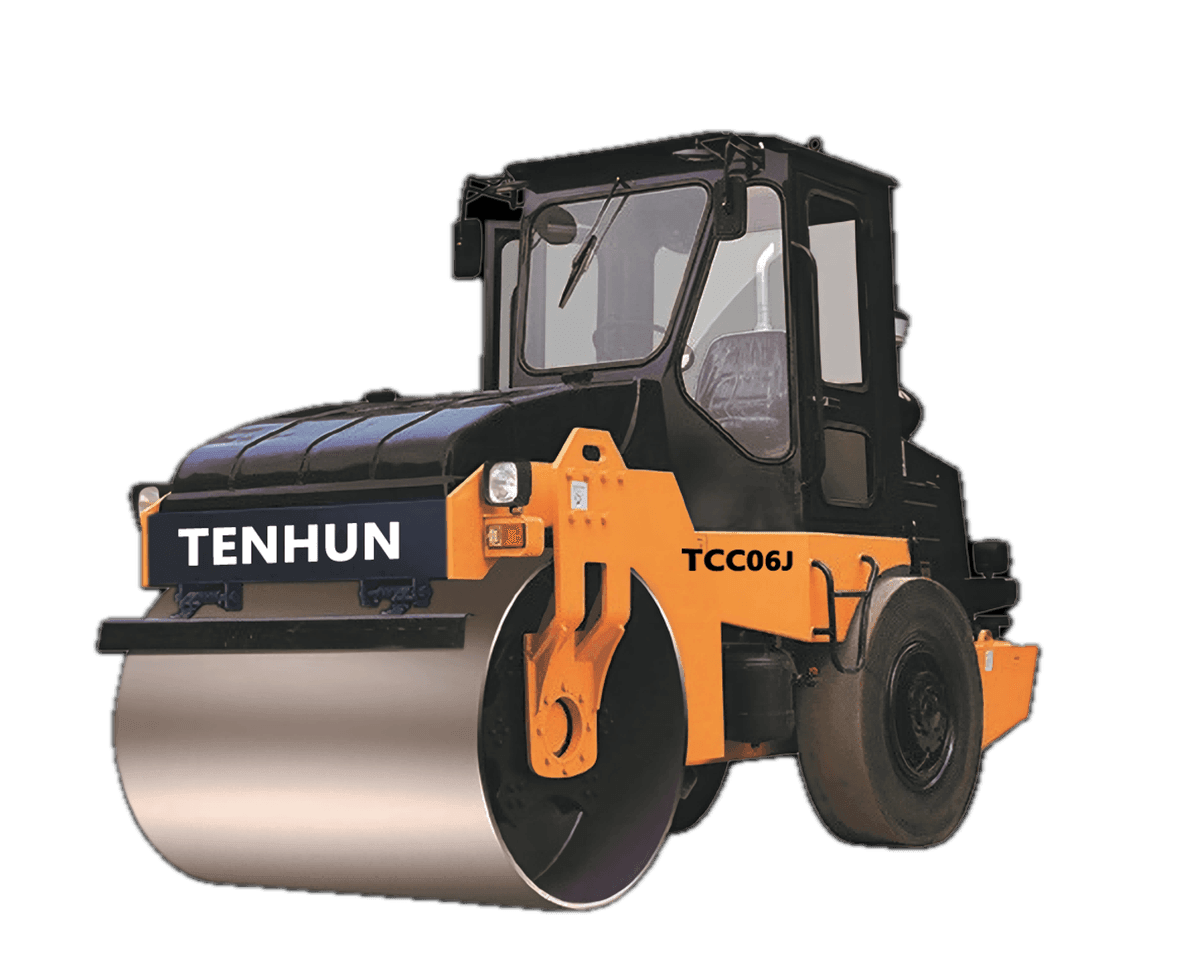

TCC06J 6-Ton Single Drum Vibratory Roller

The TCC06J Single Drum Vibratory Roller is a high-performance 6000kg machine designed for precision road construction. Featuring an articulated frame and mechanical drive, this roller combines hydraulic steering and vibration systems to deliver superior compaction results in a compact, maneuverable package. Key Features Optimized for Asphalt: Equipped with low-pressure smooth pneumatic tires, it functions as both a drum and tire roller, making it exceptionally suitable for asphalt road finishing. Durable Engine Protection: Includes a two-stage dust-proof air filter to significantly extend engine life in harsh working environments. Superior Vibration Isolation: Utilizes high-quality rubber for secondary vibration reduction, ensuring excellent isolation and operator comfort. Corrosion Resistance: Features a durable FRP (Fiberglass Reinforced Plastic) water tank and an electric booster sprinkler system for reliable operation. Versatile Applications: While standard with slick tires, optional patterned tires are available for subgrade compaction projects. Technical Specifications Operating Weight: 6000 kg Drum Width / Diameter: 1500 mm / 1100 mm Centrifugal Force: 67.3 kN Vibratory Frequency / Amplitude: 40 Hz / 0.72 mm Traveling Speed: Max 20 km/h (Forward) Gradeability: 30% Engine: XINCHAI A498BG (42 kW @ 2200 r/min) Tank Capacities: Fuel 120 L / Water 400 L Premium Core Configurations Engine: XINCHAI Vibratory Motor & Gear Pump: PARKER Bearings: TMK (USA) Tires: CHAOYANG Slick Tires Steering Gear: ZHENJIANG BZZ1-250 Contact us today for a detailed quote and expert support on your next road project
