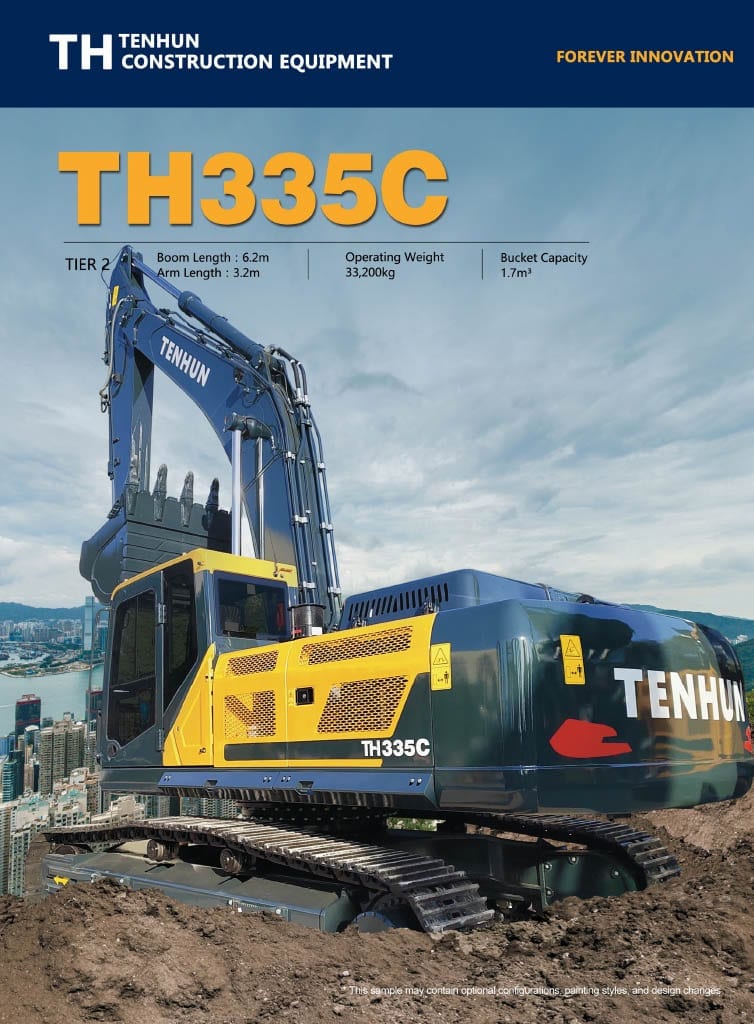

TENHUN TH335C Hydraulic Excavator

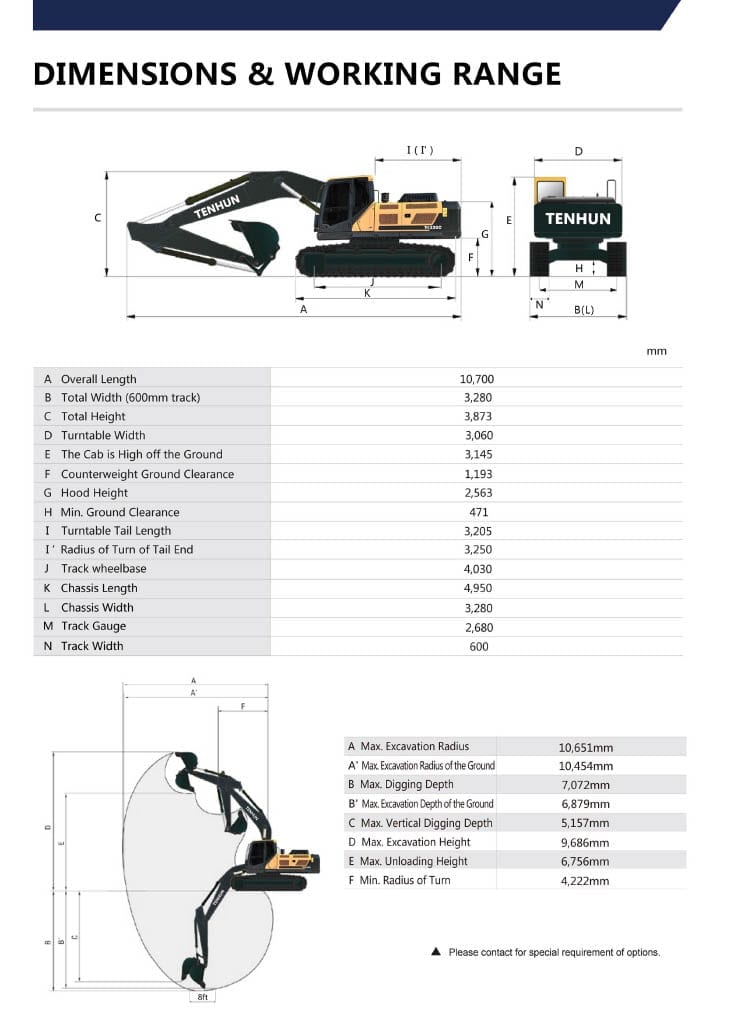

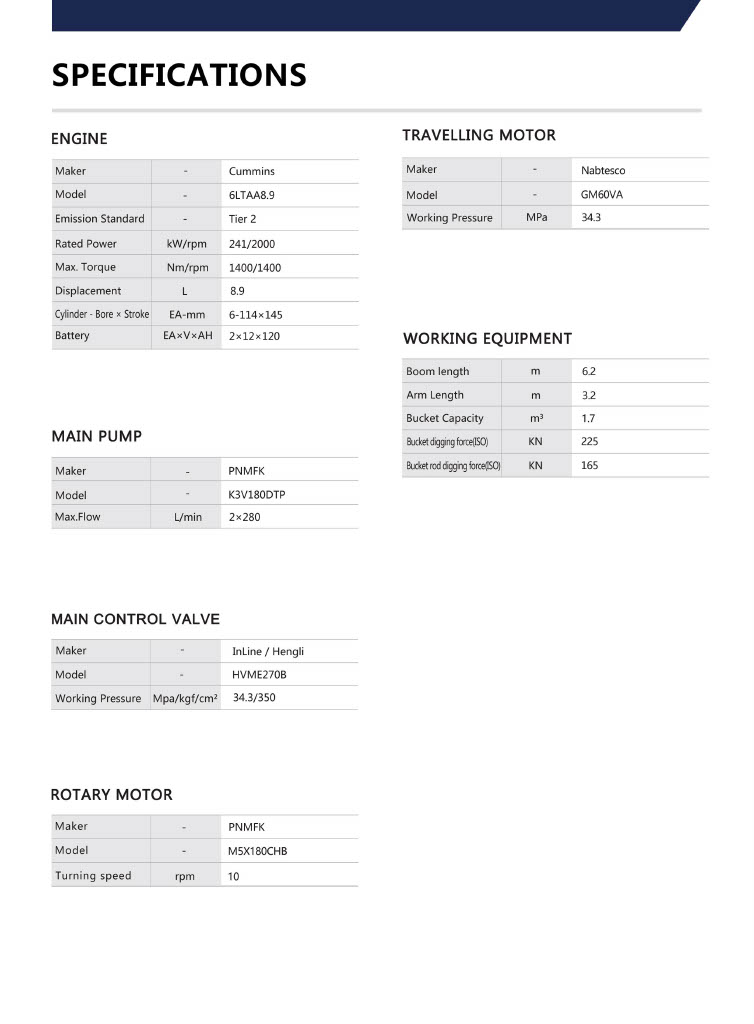

Feature,Specification: Operating Weight,"33,200 kg " Bucket Capacity,1.7m3 Engine Maker/Model,Cummins 6LTAA8.9 Rated Power,241 kW / 2000 rpm Max. Torque,1400 Nm / 1400 rpm Main Pump,PNMFK K3V180DTP (Max. Flow: 2x280 L/min) Traveling Motor,Nabtesco GM60VA Main Control Valve,InLine / Hengli HVME270B Operational Performance & Working Range The TH335C provides superior reach and digging force for demanding job sites: Bucket Digging Force (ISO): 225 KN Bucket Rod Digging Force (ISO): 165 KN Max. Excavation Radius: 10,651 mm Max. Digging Depth: 7,072 mm Max. Unloading Height: 6,756 mm Max. Excavation Height: 9,686 mm Boom / Arm Length: 6.2 m / 3.2 m Turning Speed: 10 rpm Shipping & Logistics Dimensions Essential data for international freight and site accessibility: Overall Length: 10,700 mm Total Width (600mm track): 3,280 mm Total Height: 3,873 mm Min. Ground Clearance: 471 mm Track Wheelbase: 4,030 mm Chassis Length: 4,950 mm Turntable Width: 3,060 mm This model may contain optional configurations and design changes upon request. Send message for more information
